Model no. pnb 017 a

Roll over image to zoom in

Technical Specification

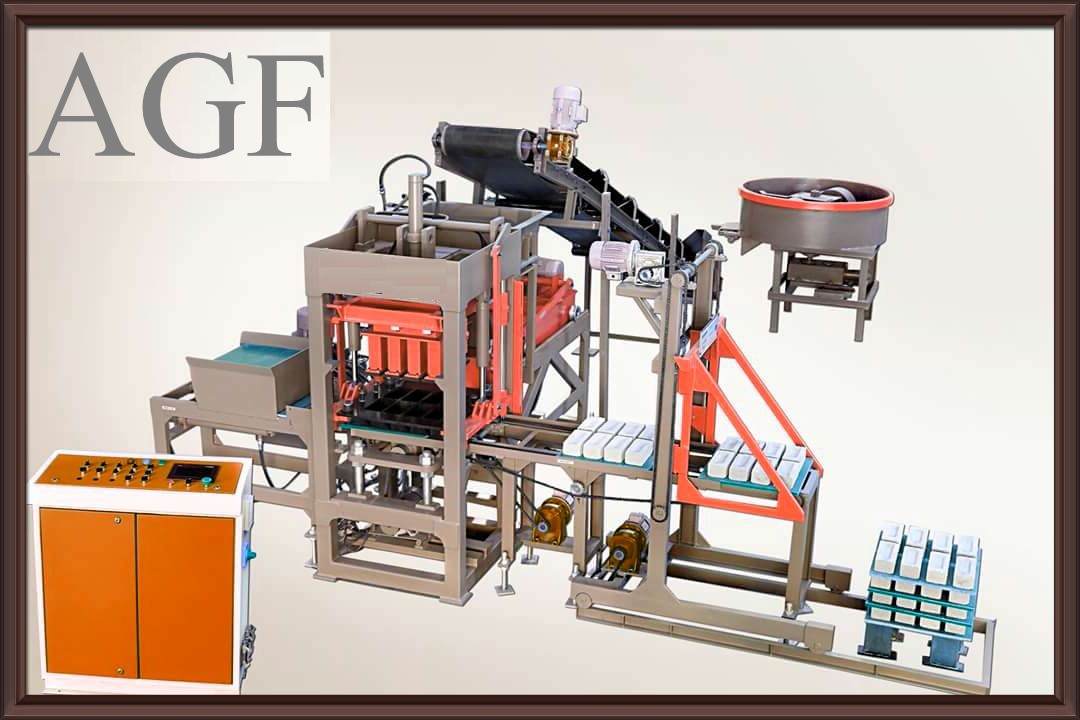

Model PNB-017A (Special design Multipurpose Plant)
Maximum Vibro Pressure Tonnage 10 to 12 MT (415 Volts advance hydraulic & German Technology Vibro system for super strength of flyash/concrete brick blocks)
Power Required 34 HP
Manufacturing Capacity Hollow Blocks: 6/8/16 pcs (Acc. to size) in one operation
Bricks: 35000-38000 per shift
Facility Materials Automatically Double Feeder Facilitates for production of Hollow & Paver Blocks
Discharge of Material Discharge of finish product Through Bering Conveyor for Faster Production
Pallet Feeder Pallet Feeder back side of machine
Color Feeding Specially make color feeder for paver block top layer
Production in shift of 8 hours Hollow & Paver Blocks
Block Size 400 x 200 x 200mm 7500 Pcs
400 x 200 x 150mm 9000 Pcs
400 x 200 x 100mm 12000 Pcs
Brick Size 230 x 110 x 75mm 30000 Pcs
Concrete Paver Blocks Double Layer Approx. 12000 Pcs. (as per design)
Oil Tank Capacity 300 Litres (68 No. Hydraulic Oil)
Conveyor Belt 20 Feet x 18 inch, 2HP
Paver Stacker Automatic green bricks stacking on hydraulic trolley for shift green paver one to another place
Pan Mixer Machine Heavy Roller & Blades, 500Kg Mixing Capacity
10 HP Motor & Heavy Gear Box.
Double Cone Type Dry Color Mixer 3 HP, 3 Phase Electric Motor Particulars Features
1. 2/3 Bin Feeder 4 to 5 Mt/Each
2. Weighting System Electronic Digital
3. Fly Ash Screw Conveyor 219 x 6m
4. Cement Screw Conveyor 168 x 6m
5. Installed Capacity Kw (HP) 11.1 Kw(15)
6. PLC Auto System Schneider Electric

Note: This plant need fully automatic batching plant for maximum production line.
